DC Audio

DC Audio Pro Audio Horn

$149.99

Shipping calculated at checkout.

Key features

Speaker impedance: 8.0 ohms
Voice-coil diameter: 3 inches
Throat diameter: 1.4 inches
Diaphragm material: Titanium
Frequency range: 1.5–20 kHz
Cutout diameter: 5.7 inches

Description

Product Overview

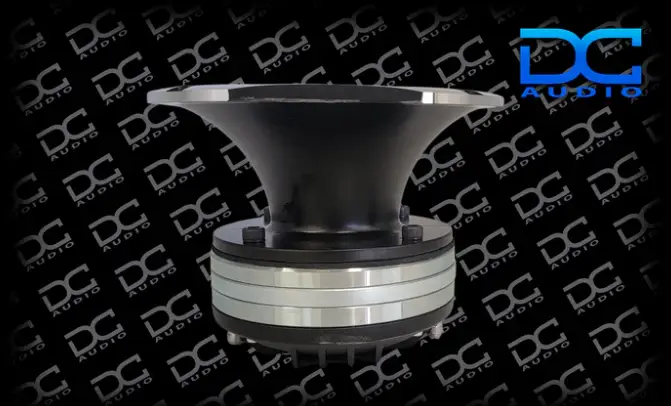

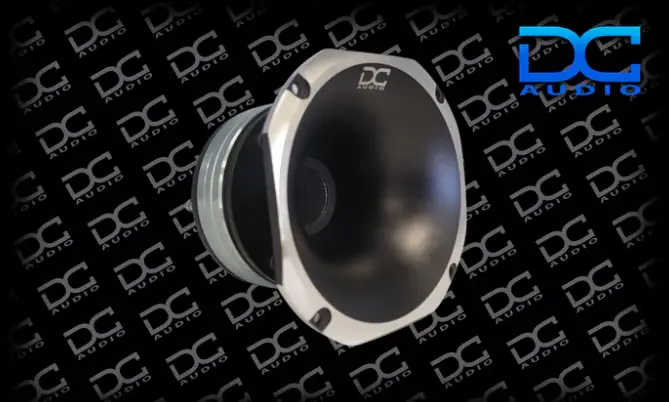

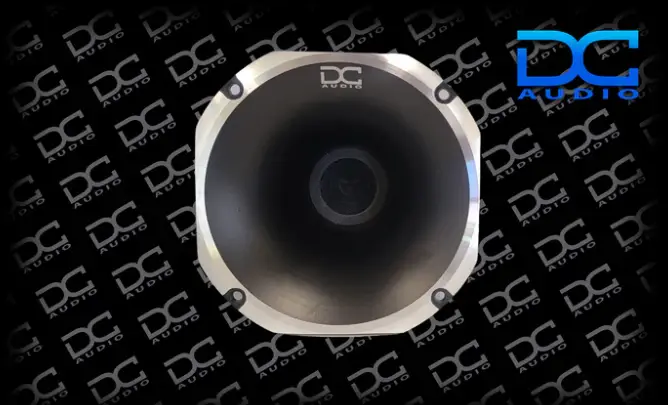

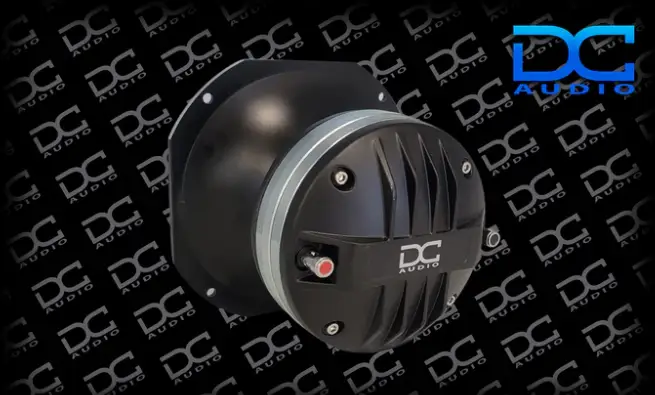

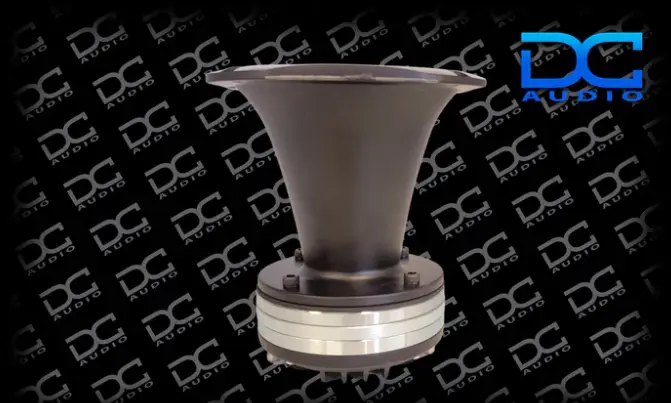

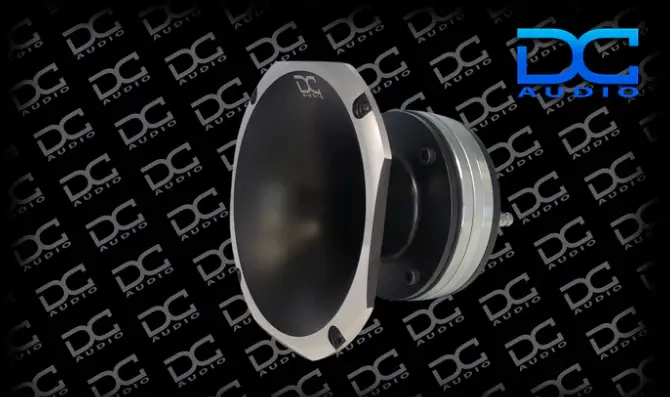

Bring vocals forward with the DC Audio Pro Audio Horn, a high-performance NEO pro audio horn designed for loud playback and durable use. Its titanium diaphragm, 3.0-inch voice coil, and 108 dB sensitivity make it a distinctive option for audio systems in boats, side-by-sides, motorcycles, and cars.

Key Features & Benefits

120-watt AES rating: The horn is rated for 120 watts AES and 240 watts program power.
Titanium diaphragm: The diaphragm material is specified as titanium.
108 dB sensitivity: This sensitivity rating describes the horn’s stated output sensitivity.
1.4-inch throat: Check this throat size when planning the horn’s placement in your audio system.
Long and short options: The listed dimensions and mounting depths help you assess available space.
Individual sale: Each purchase is for one horn.

Technical Specifications

Specification	Value
AES Power Rating	120 watts / 240 Watts Program
Voice Coil	3.0"
Throat Size	1.4”
Diaphragm Material	Titanium
Impedance	8 ohms
Frequency Response	1.5khz-20khz
Sensitivity	108db
Cutout	5.7" Hole to Hole (diagonal)
Stock Horn Length	5.32” x 6.88” Diameter (option)
Short Horn Length	3.0” x 6.85” Diameter

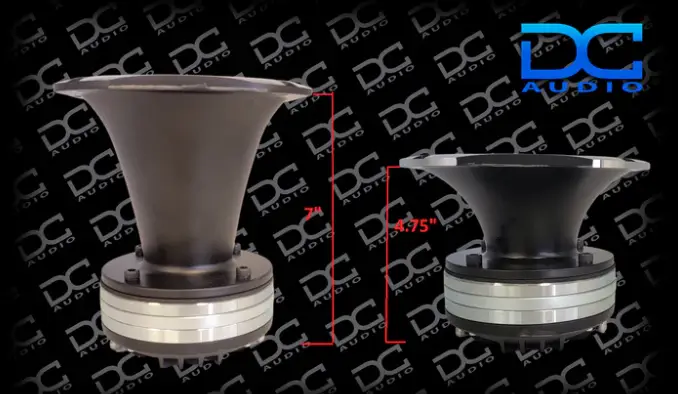

Mounting Depth	Long Horn 7.0"; Short Horn 4.75"
Sold	In Individuals

Why Choose This Product?

This DC Audio horn pairs a titanium diaphragm and 3.0-inch voice coil with a 1.4-inch throat. Its listed long and short configurations offer different dimensions to consider when planning a pro audio installation.

Installation & Compatibility Notes

Compare the 5.7-inch diagonal hole-to-hole cutout and the applicable horn dimensions and mounting depth with your available mounting space. The horn is rated at 8 ohms, so check that your audio system supports that impedance before installation.

Frequently Asked Questions

What is the power rating of the DC Audio Pro Audio Horn?

Its AES power rating is 120 watts, with a 240-watt program rating.

What is the horn’s impedance?

The listed impedance is 8 ohms. Confirm that your audio system supports this load.

How much mounting depth should I allow?

The listed mounting depth is 7.0 inches for the long horn and 4.75 inches for the short horn.

Is this horn sold as a pair?

No. It is sold individually.
