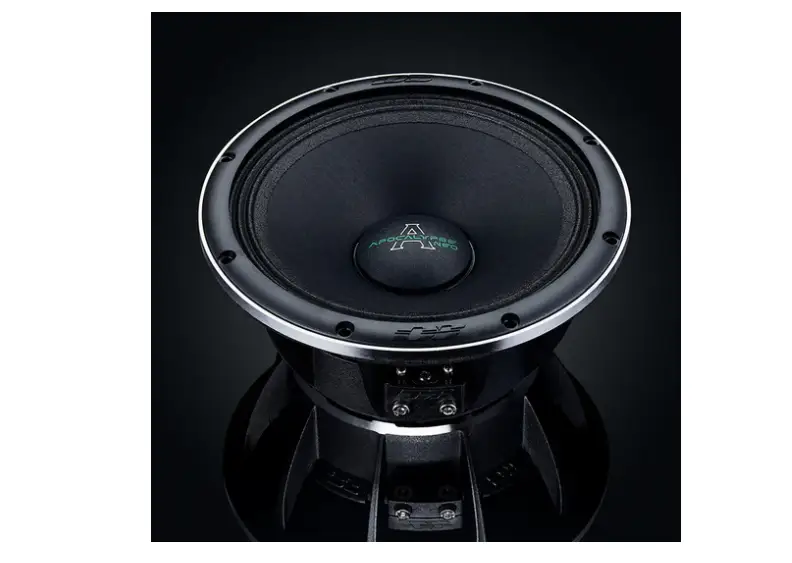

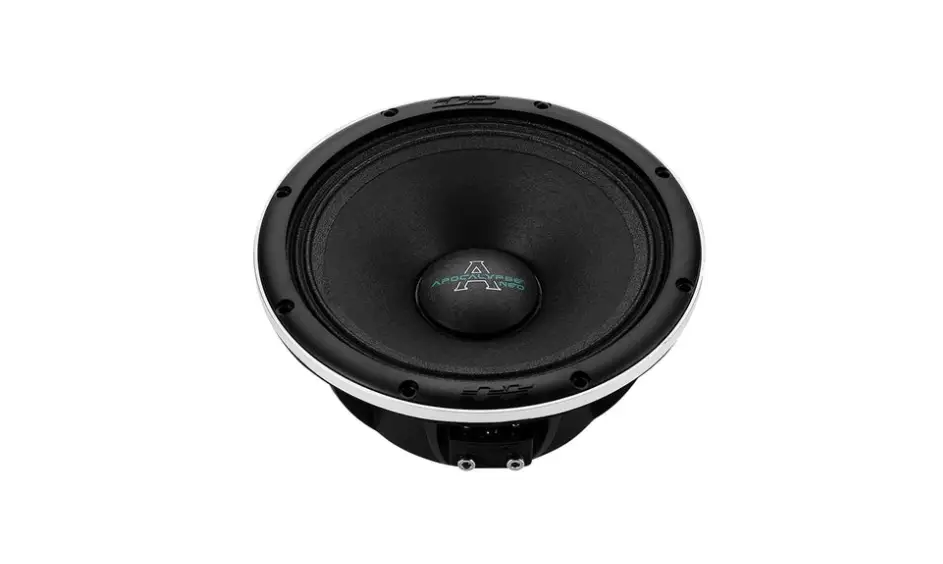

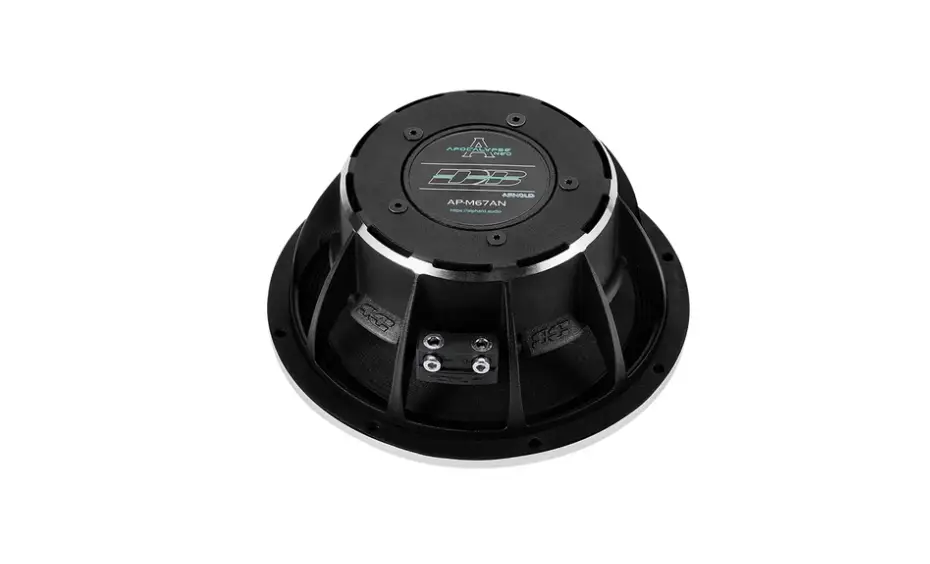

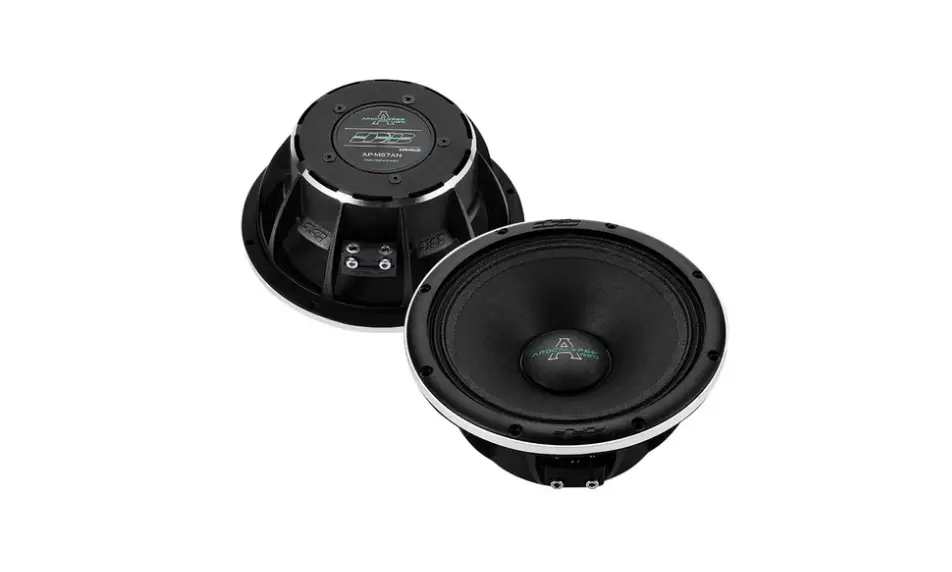

Deaf Bonce Apocalypse AP-M67AN | 6.5" Mid-Range Speakers (Pair)

Deaf Bonce Apocalypse AP-M67AN is a 6.5" midrange pair designed for car setups that demand clear vocal clarity and detailed midrange performance. Built for enthusiasts, it combines a Neodymium magnet with a sizable 1.75" voice coil to deliver strong midband output within a compact package.

• Size: 6.5 inch — fits a common midrange footprint, balancing cone area for efficient midrange energy and enclosure compatibility.
• Type: Midrange — specialized for vocal and instrument detail within the 200–14000 Hz range, pairing with tweeters for a full two-way front stage.
• Frequency response: 200-14000 Hz — covers the essential midrange and extends toward upper frequencies for crisp articulation when used with a dedicated high-frequency driver.
• Package quantity: Pair — supplied as a matched two-channel pair for stereo installation.
• Voice coil size: 1.75 inch — larger coil improves heat dissipation and sustained power handling in compact drivers.
• Cone: Paper — lightweight cone with good stiffness-to-weight characteristics for fast transient response.
• Magnet: Neodymium — high-flux magnet in a compact frame enhances efficiency and sensitivity.
• Voice coil wire: CCAW — copper-clad aluminum winding reduces mass while maintaining conductivity.
• Surround: Cloth — durable surround that supports linear excursion and longevity in automotive environments.
• RMS Power: 300 W — continuous power handling, guiding amplifier pairing and headroom in daily use.
• MAX Power: 600 W — peak handling for brief transients without exceeding the driver’s limits.
• Frame: Alu — aluminum frame delivers rigidity with light weight for easier installation.
• Impedance: 4 Ohm — standard load for a wide range of car amplifiers and crossovers.
• SPL: 102.00 dB — efficiency rating indicating higher output per watt compared to many entries in its class.
• Fs: 125 Hz — resonance frequency informing enclosure design and low-end behavior of the midrange.
• Qts: 0.31 — system resonance factor that guides how the driver interacts with an enclosure for desired tuning.
• BL: 9.30 — motor strength indicator affecting how effectively electrical energy translates to motion.
• Vas: 5.72 L — equivalent compliance, useful for estimating suitable enclosure volume for tuned performance.
• Mounting depth: 2.66 inch — shallow mounting footprint ideal for tight dash or door cavities.
• Cut-out dimension: 5.98 inch — the hole size required for proper installation.
• Gross weight: 6.64 lb (3.01 kg) — packaged weight for the pair.

Benefits: In a two-way front-stage setup, this AP-M67AN midrange handles vocal content and instrument detail with efficiency and authority, while its 4-ohm impedance and 102 dB efficiency help you achieve meaningful output from a wide range of amplifiers. The combination of Neodymium magnet, 1.75" voice coil, and paper cone delivers a lightweight, responsive midrange with solid transient performance, and the shallow mounting depth and 5.98" cut-out provide installation flexibility in tighter panels common to modern vehicles.
