1 6

DS18

$10.00 off

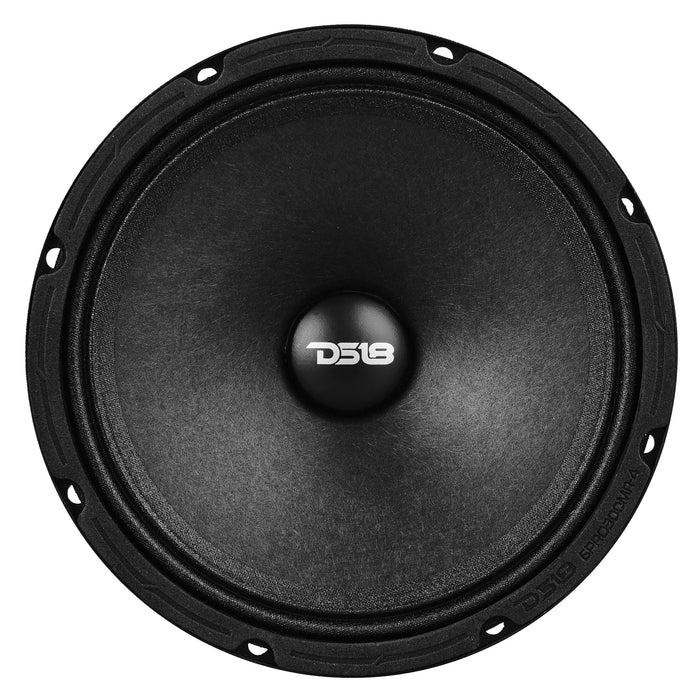

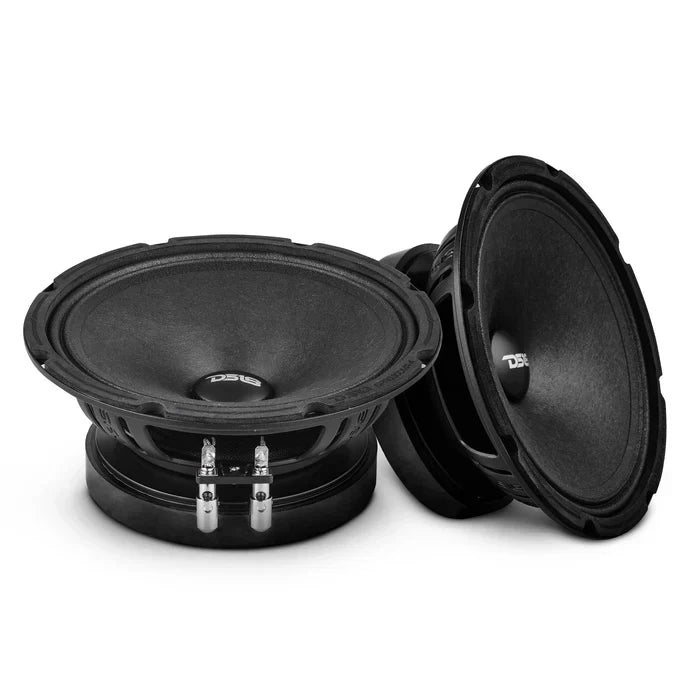

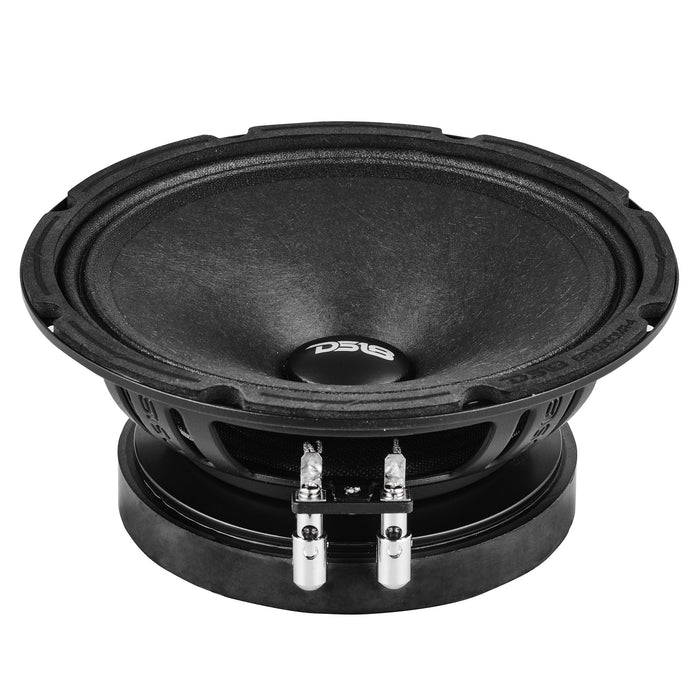

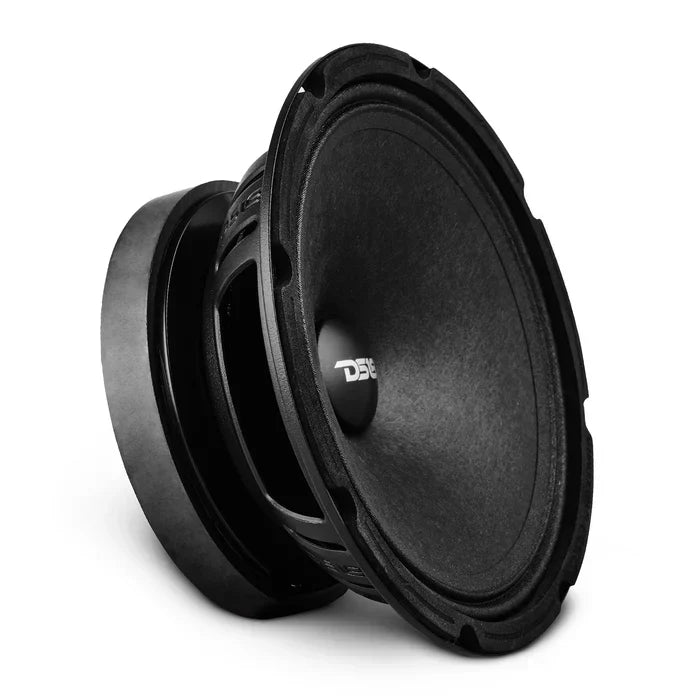

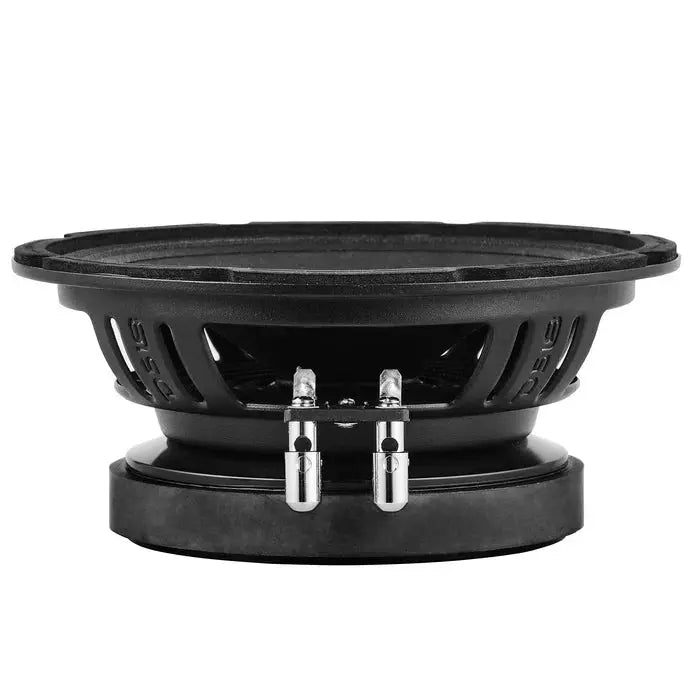

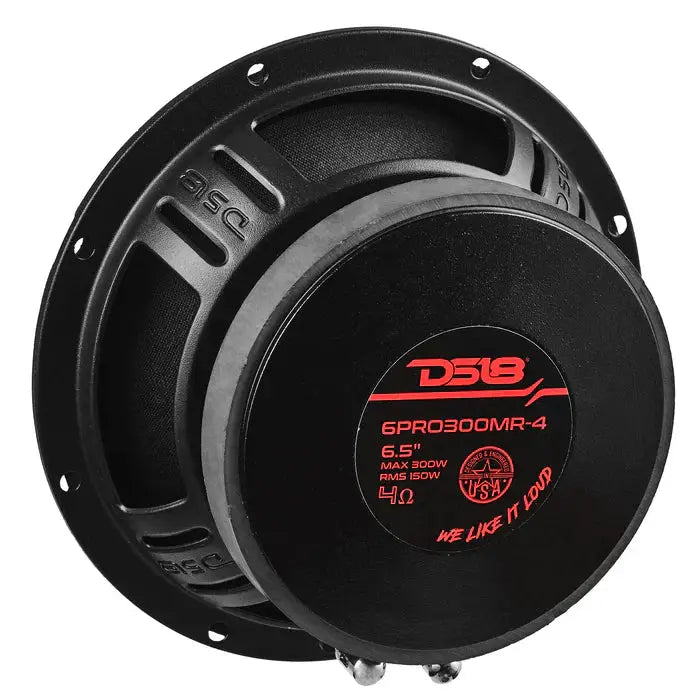

DS18 6PRO300MR-4 PRO 6.5” High Sensitivity Professional Mid-Range Loudspeaker 150 Watts Rms 4-Ohm (each)

$59.99 $69.99

Shipping calculated at checkout.

Key features

Speaker size: 6.5″
RMS power per speaker: 150 W
Speaker impedance: 4.0 ohms
Frequency response: 100 Hz–12.5 kHz
Sensitivity (1 W/1 m): 102 dB
Voice-coil diameter: 1.25 inches

Description

Product Overview

Get clear, present midrange output from the DS18 6PRO300MR-4, a 6.5-inch high-sensitivity professional mid-range loudspeaker for car-audio systems. It handles 150 watts RMS at 4 ohms and features copper demodulating rings and a curvilinear cone.

Key Features & Benefits

High sensitivity: The 102 dB (1W/1m) rating supports strong output from the power applied.
Reduced distortion: Copper demodulating rings are designed to reduce harmonic and intermodulation distortion.
Broad dispersion: The curvilinear cone is designed to improve sound dispersion while maintaining efficiency.
Thermal design: A 1.25-inch (31.7mm) voice coil on a Kapton former supports high-power operation.
Straightforward wiring: Push terminals accommodate 8 AWG connections.

Technical Specifications

Specification	Value
Nominal diameter	6.5" (165mm)
Nominal impedance	4 ohms
RMS power handling	150W
Maximum power handling	300W
Sensitivity	102 dB (1W/1m)
Frequency response	100Hz–12.5kHz
Demodulating rings	Copper
Cone shape	Curvilinear
Terminals	Push terminals (8 AWG)
Voice coil diameter	1.25" (31.7mm)
Voice coil former	Kapton
Winding material	CCAW
Cone and dust cap materials	Paper cone with a paper dust cap
Spider and surround	Cloth surround; 4" spider diameter
Magnet	Ferrite
Overall dimensions	6.7" (170mm) diameter; 3" (78mm) depth
Cutout	5.87" (149mm)
Mounting depth	2.83" (72mm)
Motor diameter	4.72" (120mm)

Why Choose This Product?

The 6PRO300MR-4 is designed for professional multi-way car-audio systems that need articulate midrange presence. Its 100Hz–12.5kHz frequency response helps guide crossover planning, while the high sensitivity rating supports output from the applied amplifier power.

Installation & Compatibility Notes

Match the speaker’s 4-ohm impedance and 150W RMS rating with your amplifier and system design. Before installation, compare the 5.87-inch cutout, 2.83-inch mounting depth, and listed overall dimensions with your available space. Plan crossover settings around the 100Hz–12.5kHz frequency response.

Frequently Asked Questions

What is the difference between the RMS and maximum power ratings?

The speaker is rated for 150W RMS and 300W maximum power handling. Use the RMS rating when matching continuous amplifier output.

What amplifier impedance should I check?

The 6PRO300MR-4 has a nominal impedance of 4 ohms. Check that your amplifier supports the intended load.

What space is needed for installation?

Check the 5.87-inch (149mm) cutout and 2.83-inch (72mm) mounting depth, along with the 6.7-inch (170mm) overall diameter and 3-inch (78mm) depth.

What frequency range does this mid-range speaker cover?

Its stated frequency response is 100Hz–12.5kHz. Use this range when planning the speaker’s role and crossover in a multi-way system.
