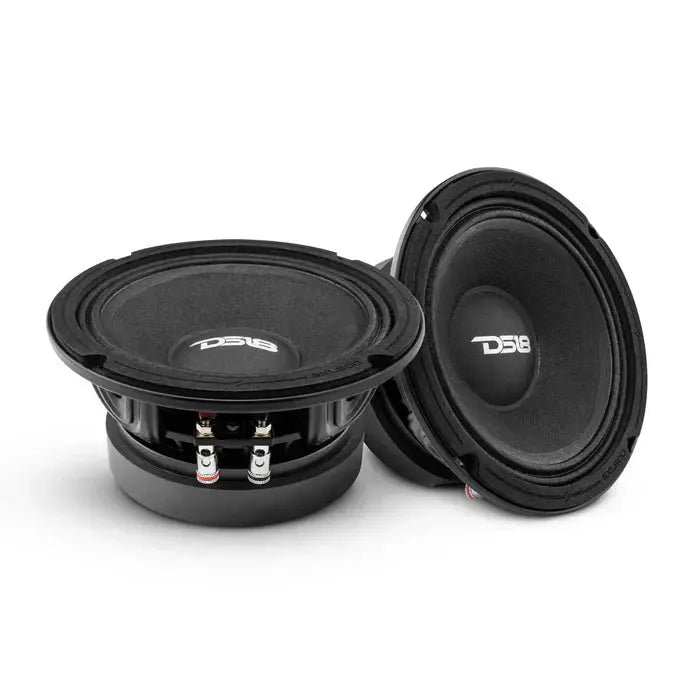

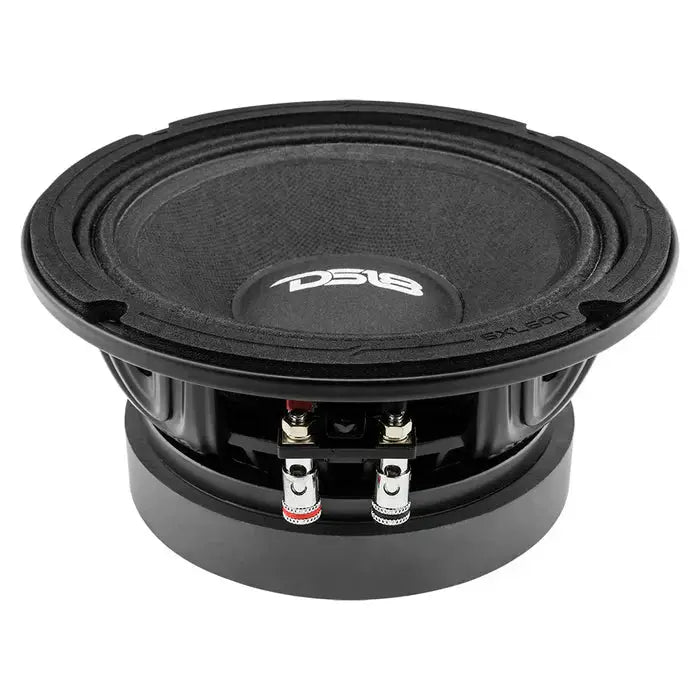

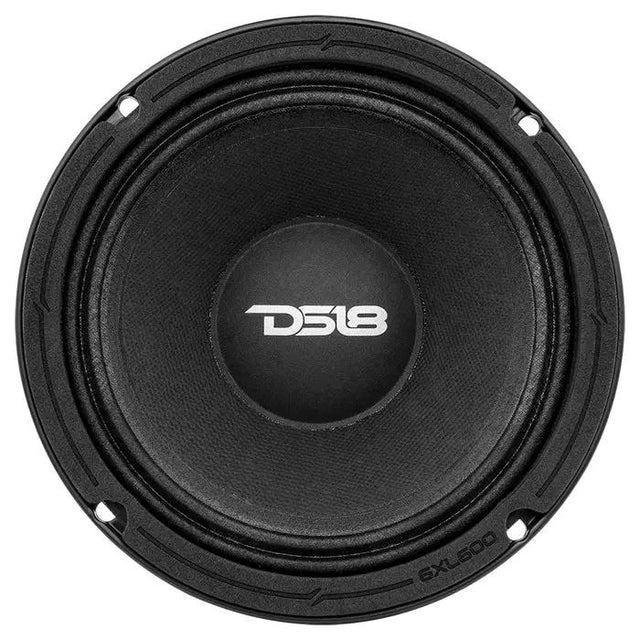

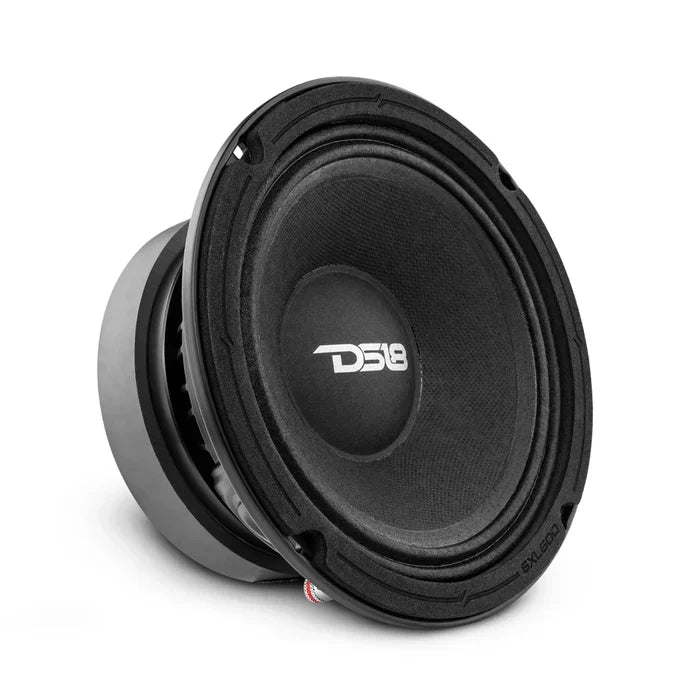

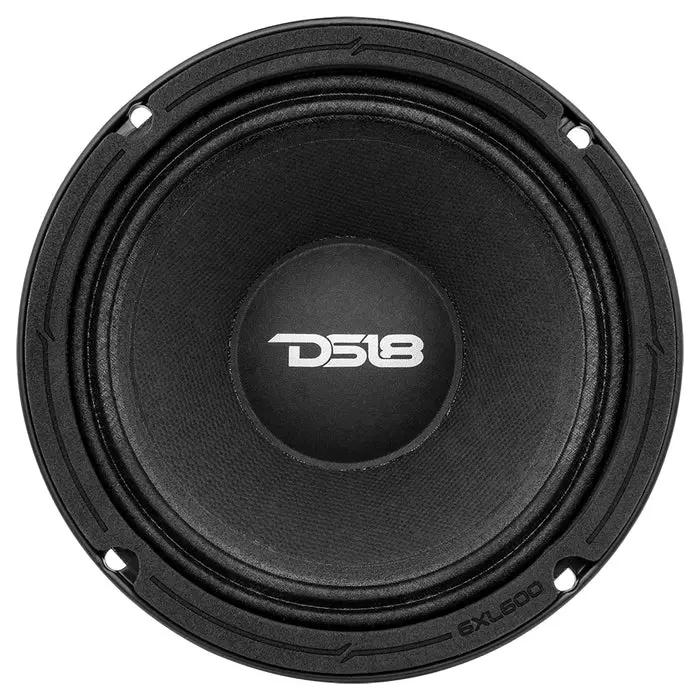

DS18 6XL600-4 XL 6.5" Mid-Range Loudspeaker 300 Watts Rms 4-Ohm (each)

Product Overview

Bring vocals and instruments forward in your car audio system with the DS18 6XL600-4 6.5-inch mid-range loudspeaker. Its 300W RMS power handling, 97 dB sensitivity, and 4-ohm impedance suit high-power systems designed around a dedicated mid-range driver or a multi-driver setup.

The 60 Hz–12.5 kHz frequency response covers lower mids through treble. Pair the speaker with a suitable amplifier and crossover to shape its role in your system.

Key Features & Benefits

• 300W RMS handling: Supports sustained power in a high-output car audio system.
• 97 dB sensitivity: Helps produce strong output with less amplifier power than a less-sensitive speaker may require.
• 2-inch voice coil: Supports heat dissipation and excursion handling.
• Aluminum basket: The rigid satin-black frame is designed to reduce flex and unwanted vibration.

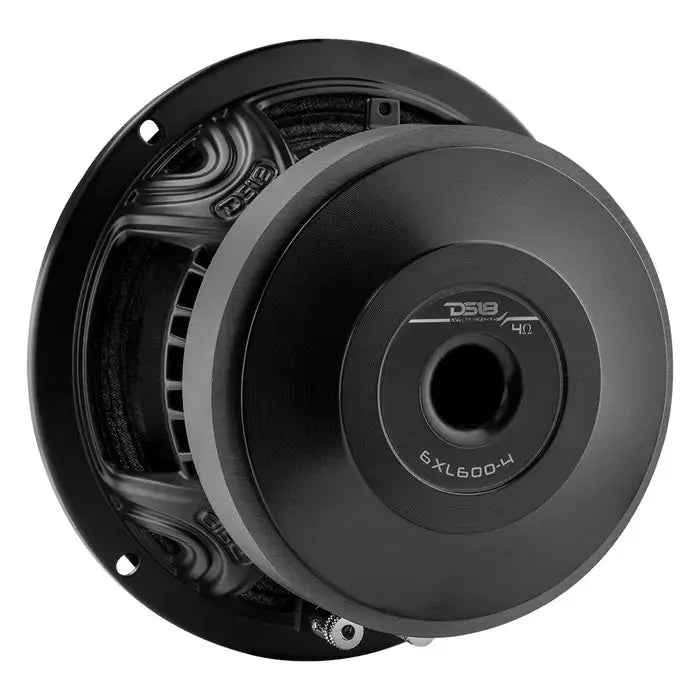

• Ferrite magnet: The 34-ounce magnet provides motor force for controlled driver movement.

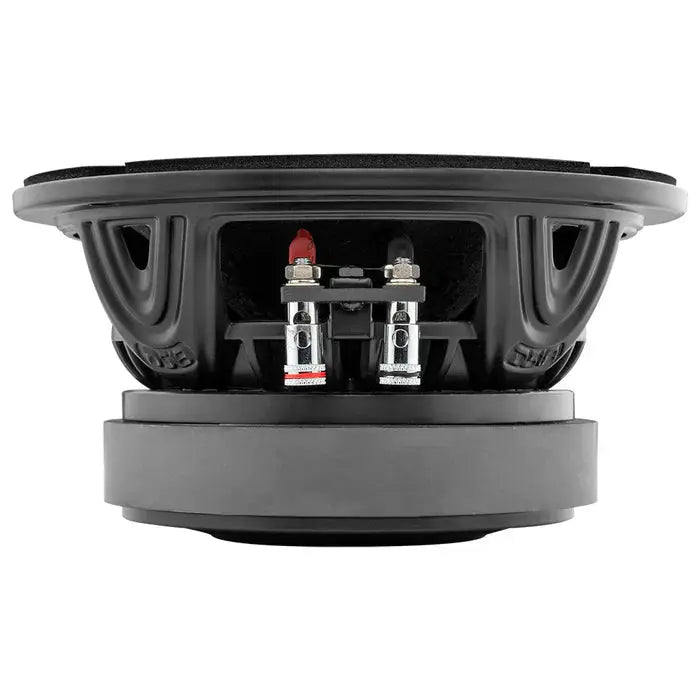

• Push terminals: Spring-loaded connections make speaker wiring straightforward.

Technical Specifications

Why Choose This Product?

The 6XL600-4 is built for systems that need a dedicated mid-range driver with substantial power handling. Its stated frequency range reaches from lower mids through treble, while the recommended 100 Hz high-pass crossover helps keep deep bass out of the mid-range driver’s workload.

Ventilation for heat dissipation and a distortion-reducing design are also listed among its features. These details make it worth considering when choosing a speaker for a high-output setup focused on vocal and instrument presence.

Installation & Compatibility Notes

Check the 5.9-inch front-mount baffle cutout and 3.14-inch depth against your available mounting space before installation. The listed nominal diameter is 6.5 inches, but actual fit depends on the opening and mounting arrangement.

Plan for a suitable amplifier and crossover. The product details recommend a 100 Hz high-pass crossover; confirm your system’s requirements before connecting the speaker.

Frequently Asked Questions

How much power does the DS18 6XL600-4 handle?

It is rated for 300 Watts RMS and 600 Watts MAX. Match the amplifier to the speaker’s 4-ohm nominal impedance and power ratings.

What crossover point is recommended?

The listed recommended high-pass crossover is 100 Hz.

What are the mounting dimensions?

The details list a 5.9-inch front-mount baffle cutout and 3.14-inch depth. Check both measurements against your installation space.

Can I use it as the mid-range driver in a multi-driver system?

Yes. The product details describe it for use as a dedicated mid-range driver or as part of a multi-driver car audio setup.
