DS18

$10.00 off

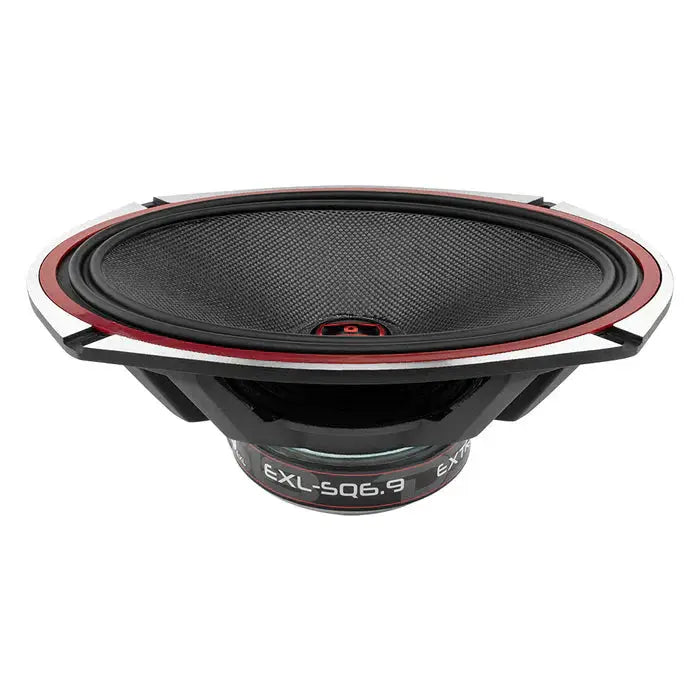

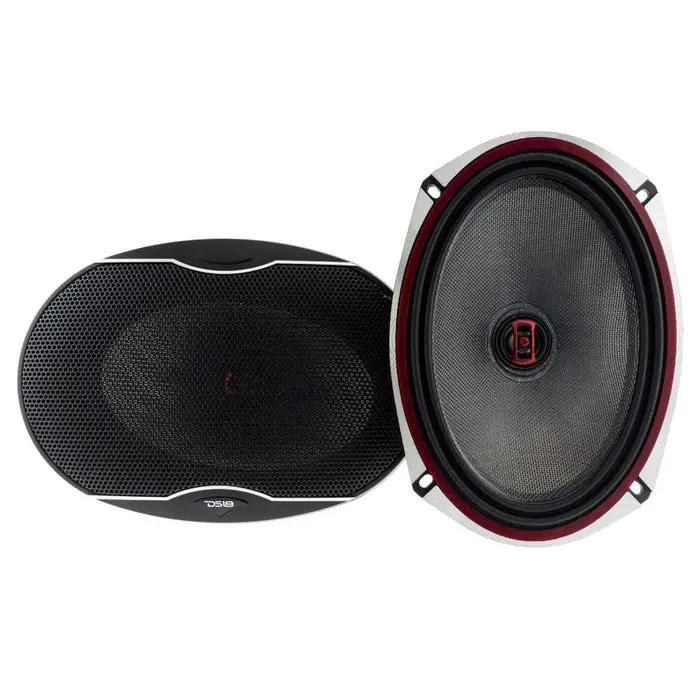

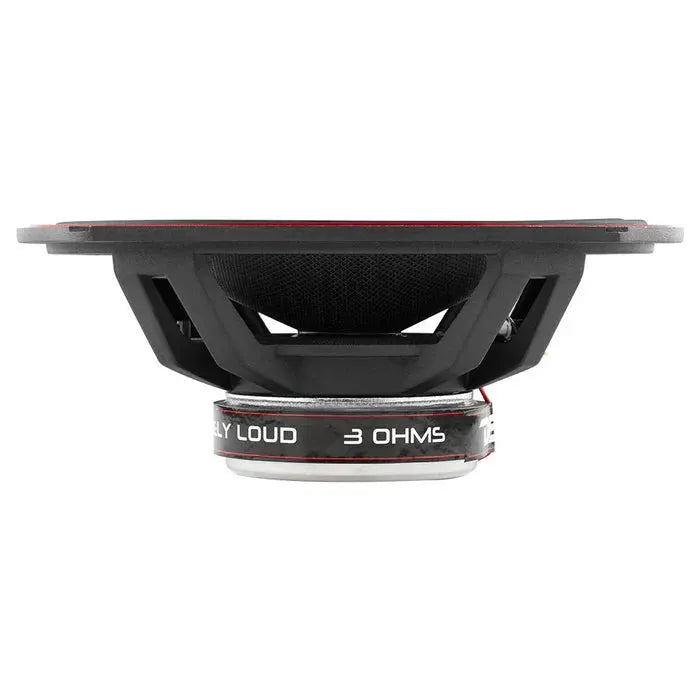

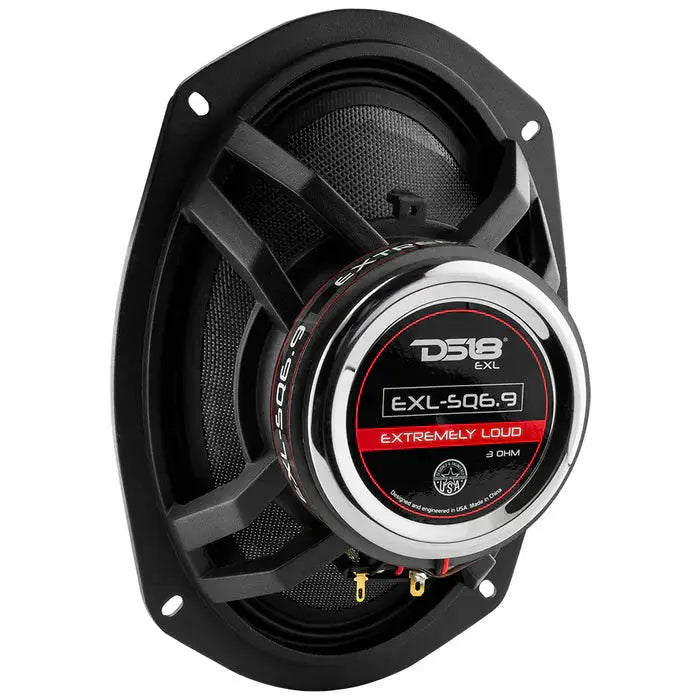

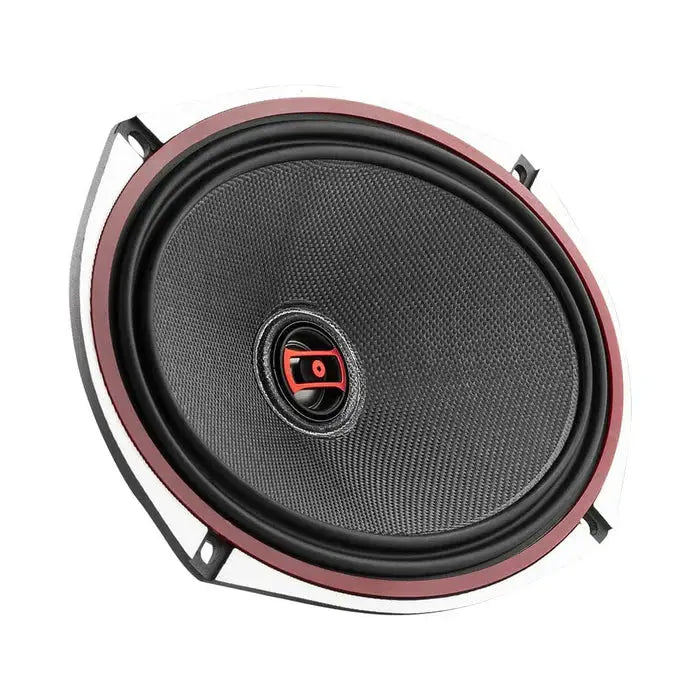

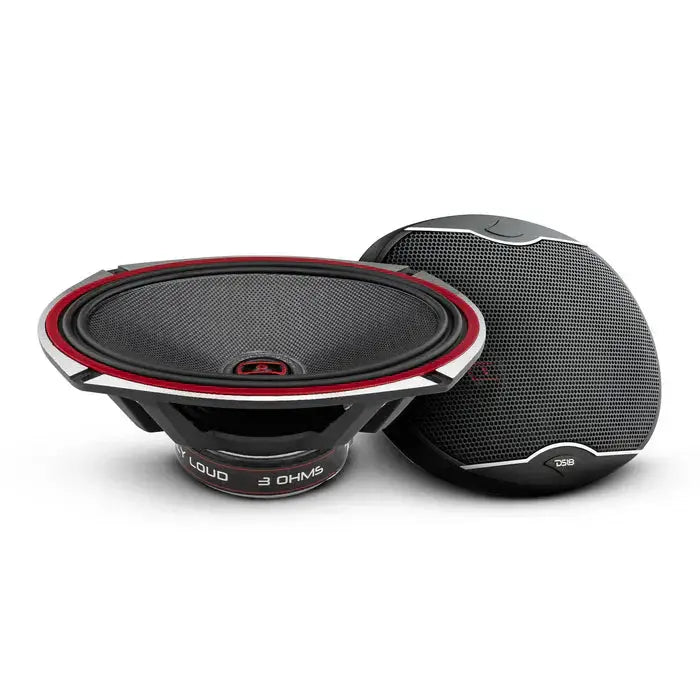

DS18 EXL-SQ6.9 EXL 6x9" 2-Way Coaxial Speaker with Fiber Glass Cone 560 Watts 3-Ohm

$239.99 $249.99

Shipping calculated at checkout.

Key features

Speaker size: 6×9″
RMS power per speaker: 160 W
Speaker impedance: 3.0 ohms
Frequency response: 55 Hz–22 kHz
Woofer cone material: Glass fiber
Woofer surround material: Rubber

Description

Product Overview

Get full-range sound from a single 6x9-inch mounting location with the DS18 EXL-SQ6.9 EXL 2-way coaxial car speaker. Its glass-fiber cone, dedicated PEI dome tweeter, and 3-ohm impedance suit high-output audio builds where this speaker size is supported.

Key Features & Benefits

Two-way coaxial design: A built-in woofer and tweeter provide full-range sound from one speaker location.
Glass-fiber cone: The stiff, lightweight cone supports accurate sound reproduction with reduced distortion.
PEI dome tweeter: The 1.14-inch tweeter delivers crisp high-frequency detail.
160W RMS power handling: This continuous rating helps you assess the speaker for a high-powered system.
3-ohm impedance: Check your amplifier’s supported load when planning the system.

Technical Specifications

Specification	Value
Speaker size	6x9"
Speaker type	2-Way Coaxial
Impedance	3 Ohm
RMS Power	160 Watts
Max Power	560 Watts
Frequency Response	55 Hz – 22 kHz
Sensitivity	90 dB / 1W / 1m
Tweeter	1.14" PEI Dome
Voice Coil	BASV 1.14"
Cone Material	Glass Fiber Cone
Magnet	Neodymium magnet
Magnet Material	Strontium
Magnet Weight	19.8 oz
Surround	Rubber edge

Why Choose This Product?

The EXL-SQ6.9 combines a glass-fiber cone and rubber surround with a dedicated tweeter for a broad frequency range. Its 55 Hz–22 kHz response covers low frequencies through extended highs, while the 90 dB / 1W / 1m sensitivity rating describes its output relative to input.

For a system built around 6x9-inch speakers, the 160W RMS and 560W maximum ratings help you compare power handling with your amplifier. The 3-ohm load is another important matching consideration.

Installation & Compatibility Notes

Confirm that your vehicle’s speaker opening accepts a 6x9-inch speaker and that the installation space provides suitable clearance. Check your amplifier’s load requirements and power ratings against the speaker’s 3-ohm impedance and 160W RMS handling before connecting it.

Frequently Asked Questions

Is the DS18 EXL-SQ6.9 a two-way speaker?

Yes. It combines a woofer and a 1.14-inch PEI dome tweeter in a coaxial design.

What do the 160W RMS and 560W maximum ratings mean?

160 Watts is the RMS power rating, and 560 Watts is the maximum power rating. They are separate ratings, not interchangeable figures.

What amplifier load should I check?

This speaker has a 3-ohm impedance. Confirm that your amplifier supports that load and compare its output with the 160W RMS rating.

Will it fit my vehicle?

It is a 6x9-inch speaker. Check your vehicle’s speaker opening and available installation space before choosing it.
