DS18 G5.7XI GEN-X 5x7" 3-Way Coaxial Speakers 165 Watts 4-Ohm

Name: DS18 G5.7XI GEN-X 5x7" 3-Way Coaxial Speakers 165 Watts 4-Ohm
Brand: DS18
Price: 59.99 USD
Availability: InStock

$59.99 $69.99

Shipping calculated at checkout.

Key features

Speaker size: 5×7″
RMS power per speaker: 50 W
Speaker impedance: 4.0 ohms
Frequency response: 40 Hz–20 kHz
Sensitivity (1 W/1 m): 85 dB
Woofer voice-coil diameter: 1 inch

Description

DS18 G5.7Xi GEN-X 5x7" 2-Way Coaxial Speakers 150 Watts
4-Ohm

The GEN-X Coaxial Series is back!

The power, clarity, and range everyone who likes it LOUD loves about the GEN-X series returns in a speaker equipped with an extremely durable steel basket to outlast any vehicle it’s installed in.

The G5.7Xi was made for amplifiers, but can be used in factory settings with 4-ohm factory amplifiers in most cases for great sound and clarity over factory OEM speakers.

The Mylar Balanced Dome Tweeters included in this coaxial help it achieve the highest range of frequencies possible, while the speaker itself reaches frequencies as low as 40Hz. The 2-way design on these speakers bring a full range of frequencies with great response without the need for a large power requirement.

These speakers get loud extremely easily with a MAX Power Handling of 150W and RMS Power Handling of 50W.

NO GRILL INCLUDED ON THIS SPEAKER

Order the G5.7Xi for your system to expand your soundstage today!

Highlights

2-Way Design implemented for full range quality on every listen
Rubber surrounds with treated paper cones for great volume and sensitivity to power ratio
2 Speakers included

Great For

Home studios
Bookshelf
Satellite
Surround Sound Speaker
Hi-Fi installation
Car audio
DIY Projects

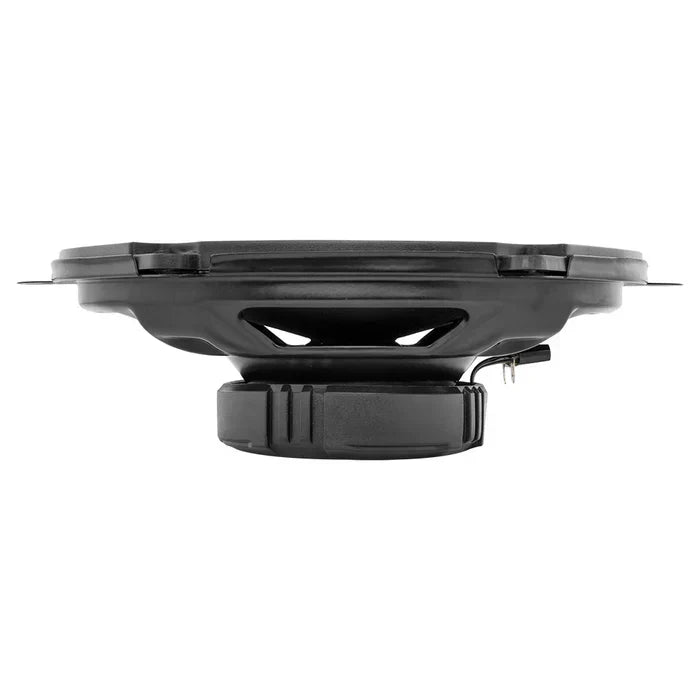

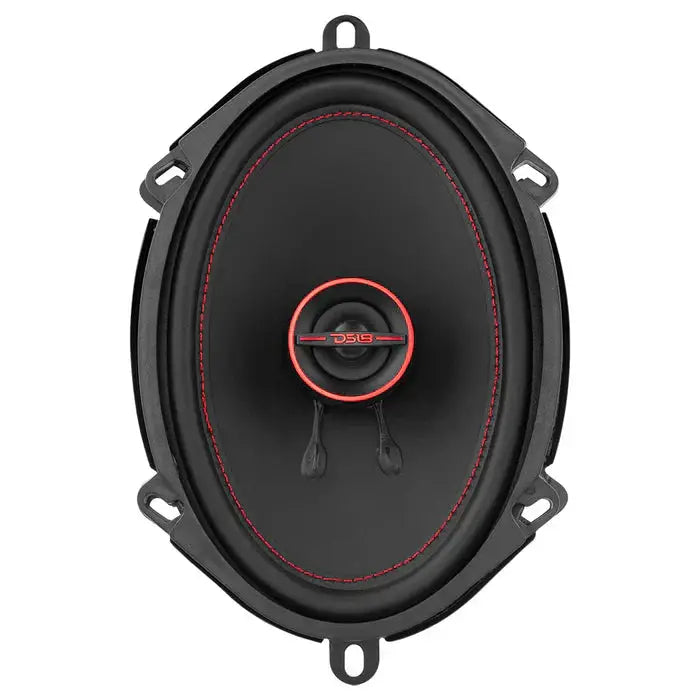

DS18 G5.7XI oval coaxial speaker shown from the front and side against a black and red branded background.

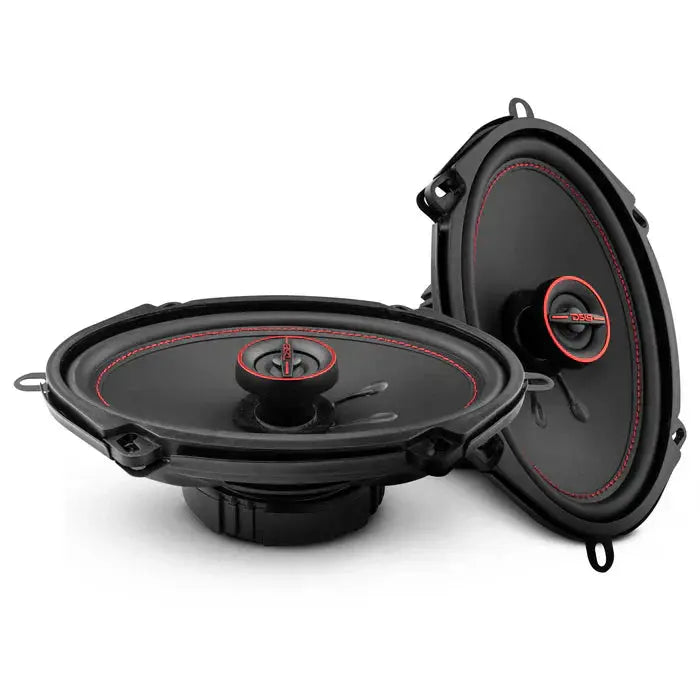

Two DS18 G5.7XI oval coaxial speakers with callouts for 5-by-7-inch size, 4-ohm impedance and power ratings.

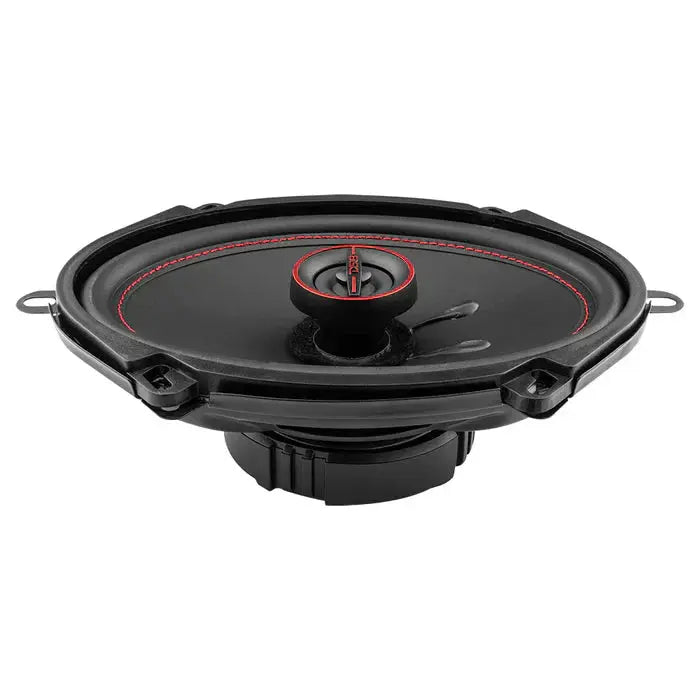

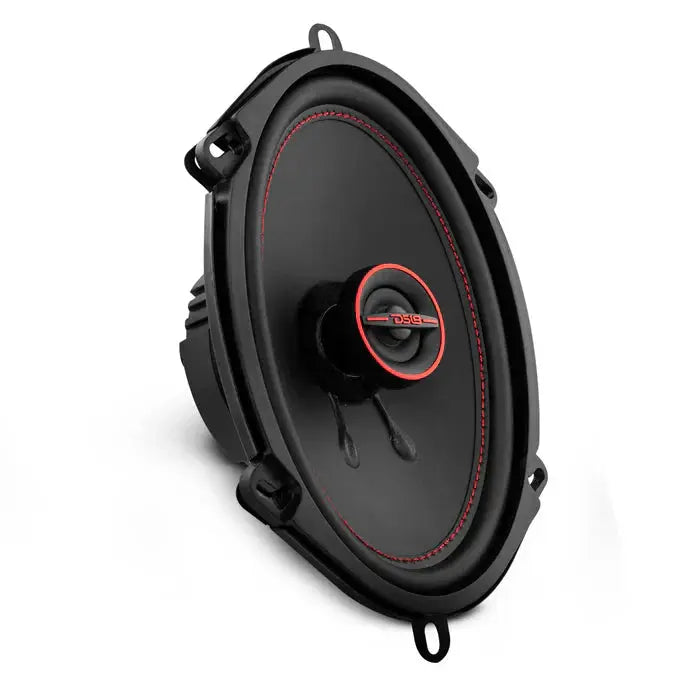

DS18 G5.7XI angled front view highlighting its rubber surround and cone, with frequency-response, sensitivity and mounting-depth callouts.

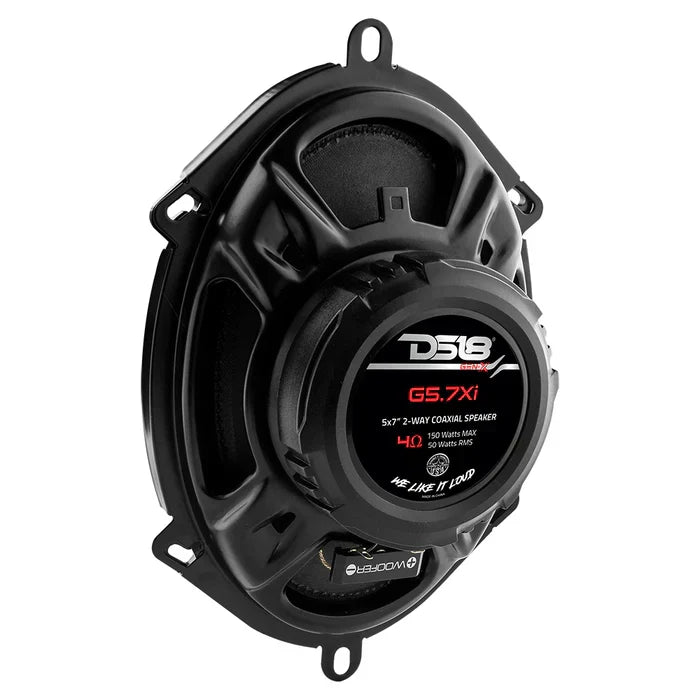

DS18 G5.7XI rear magnet close-up with woofer and tweeter magnet and voice-coil details.

DS18 G5.7XI cone and central tweeter close-up highlighting the Mylar balanced-dome tweeter and neodymium magnet.

Technical Details

Download G5.7XI Product Manual

GENERAL SPECIFICATIONS
Nominal Diameter	5X7" / 127x177mm
Nominal Impedance	4 Ohms
RMS Power Handling	50W
MAX Power Handling	150W
Sensitivity (1w/1m)	85dB
Frequency Response	40Hz-20KHz
Recommended HI Pass Crossover	70Hz
Number of ways	2
Pair or Single	Pair
Grill Included	No
WOOFER SPECIFICATIONS
Voice Coil Diameter	1" / 25.5mm
Voice Coil Former Material	ASV
Winding Material	EISV
Cone Material	Paper
Surround Material	Rubber
Basket Material	Steel
Basket Color/Finish	Black Matte
Magnet Material	Barium Ferrite
Magnet Weight	7.8Oz / 221g
TWEETER SPECIFICATIONS
Nominal Diameter	1" / 25.5mm
Voice Coil Diameter	0.5" / 13.25mm
Voice Coil Former Material	ASV
Winding Material	EISVM
Diaphragm Material	Mylar
Magnet Material	Neodymium
Magnet Weight	1.8g
SPEAKERS MEASUREMENT
Overall Diameter	5.57"x7.6" / 141.5x193mm
Overall Depth	2.63" / 66.8mm
Overall Diameter (With Grill)	N/A
Overall Depth (With Grill)	N/A
Front Mount Baffle Cutout	4.9"x7" / 126x180mm
Mounting Depth	2.13" / 54mm
Motor Diameter	3.4" / 86mm
Tweeter Protrusion	0.5" / 12.8mm
