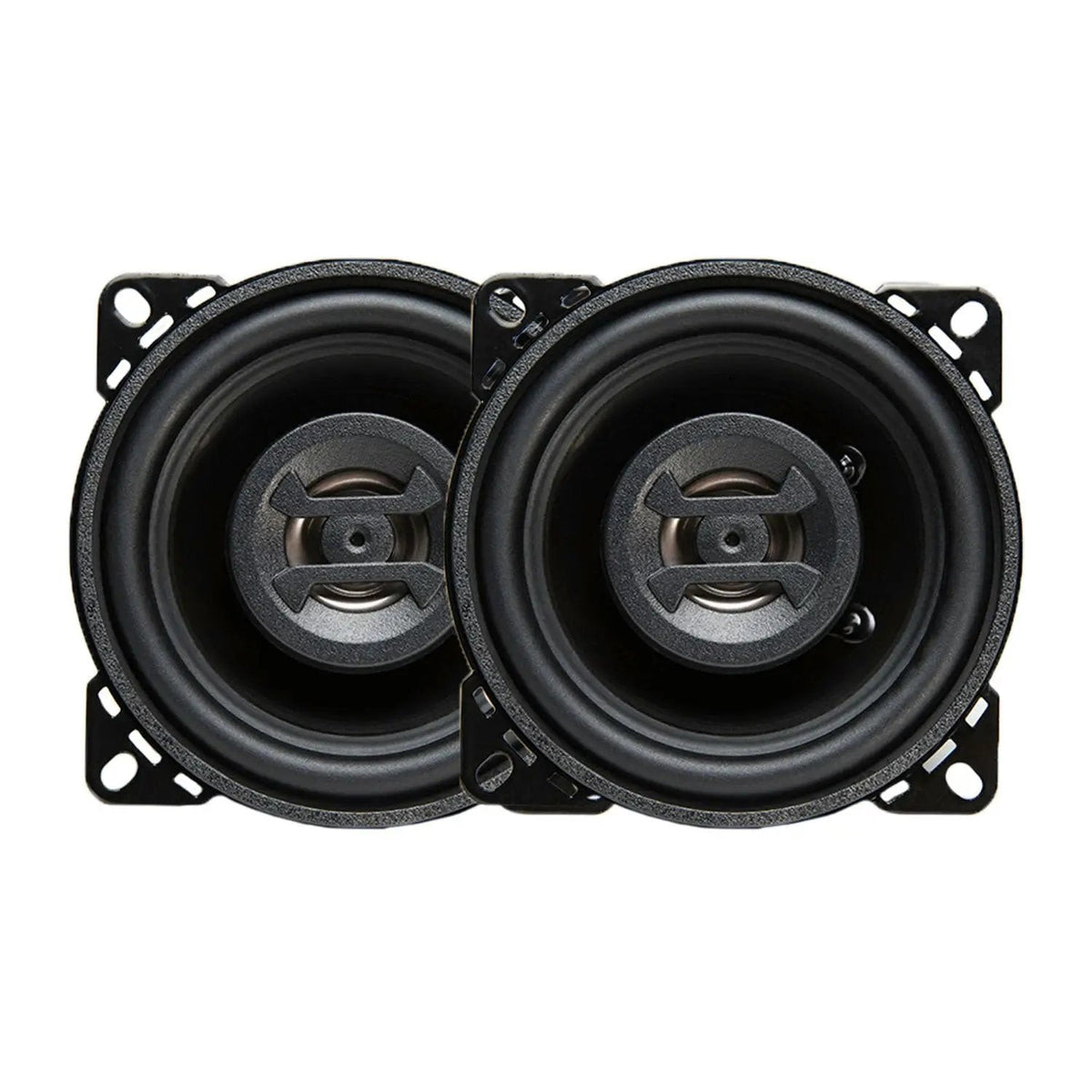

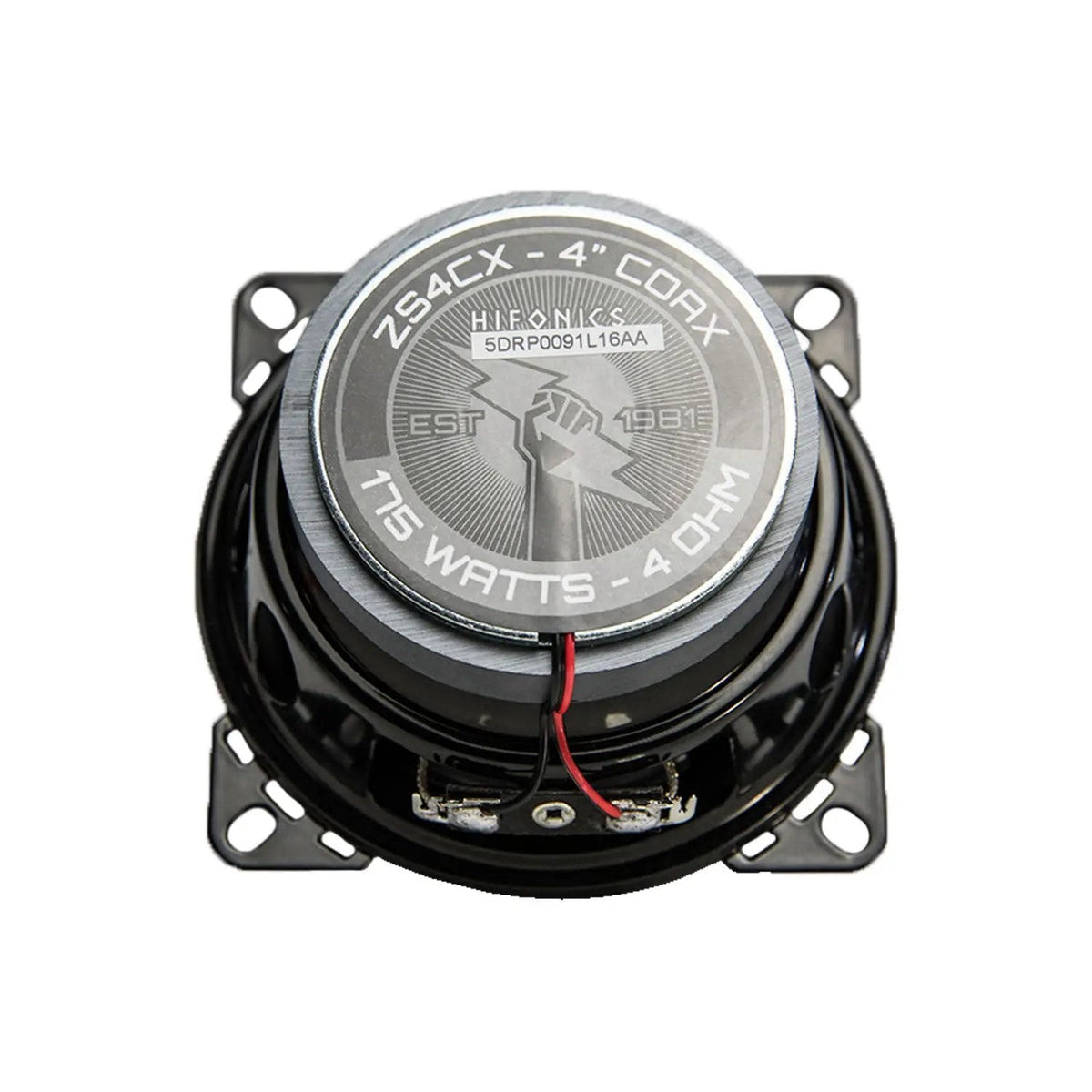

Hifonics ZS4CX ZEUS 4 Inch Speakers

Name: Hifonics ZS4CX ZEUS 4 Inch Speakers
Brand: Hifonics
SKU: 806576226710
Price: 22.99 USD
Availability: InStock

$22.99 $27.99

Shipping calculated at checkout.

Key features

Speaker size: 4″
RMS power per speaker: 30 W
Speaker impedance: 4.0 ohms
Frequency response: 55Hz-19kHz
Cone: Alpha-cellulose
Voice coil: Copper winding on Kapton former

Description

Product Overview

Bring clear highs and responsive mid-bass to a vehicle speaker location designed for a 4-inch driver with the Hifonics ZS4CX ZEUS 4 Inch Speakers. This 2-way coaxial car audio speaker system combines an Alpha-Cellulose woofer cone, moisture-resistant rubber surround, and 1-inch Neo-Mylar soft dome tweeter.

Its passive Butterworth crossover manages the transition between the woofer and tweeter, while the overcoil cooling design exchanges air over the voice coil through the spider. The speakers are intended for mounting behind a vehicle panel or dash.

Key Features & Benefits

Alpha-Cellulose cone: Its lightweight, rigid construction supports responsive movement and deep bass.
Moisture-resistant rubber surround: The surround couples to the cone for mid-bass impact.
1-inch Neo-Mylar soft dome tweeter: The impact-resistant tweeter handles high frequencies with clear sound.
Kapton components: The voice coil former is lightweight and dissipates heat efficiently.
Passive Butterworth crossover: It transitions frequencies from the midrange and mid-bass to the tweeter.
Stamped steel basket: Its anti-resonant design helps minimize harmonics and distortion from flex or ringing.

Technical Specifications

Brand	Hifonics
Series	ZEUS
Speaker size	4"
Type	Coaxial speaker
Speaker configuration	2-way
RMS power handling	30 W
Peak power handling	175 W
Impedance	4 Ohms
Frequency response	55 Hz - 19 kHz
Sensitivity	88 dB
Crossover slope	6 kHz 12 dB
Mounting diameter / cut out	9.4 cm
Outside diameter	13.7 cm
Mounting depth	7.6 cm
Weight	1.0 kg
Dimensions	30.5 × 15.7 × 7.8 cm
Color	Black
CEA standards	CEA426B
Compatibility	Universal; vehicle speaker locations accommodating 4-inch drivers with a 7.6 cm mounting depth and 9.4 cm cut-out diameter

Woofer cone	Alpha-Cellulose; lightweight for speed and rigid for deep bass
Surround and cone coupling	Moisture-resistant rubber surround with high mid-bass impact
Adhesive	High-temperature adhesive selected to create a permanent bond between the cone and surround
Voice coil	Pure copper; creates a strong magnetic field with a very thin extrusion
Voice coil former	Kapton; lightweight and efficiently dissipates heat
Spider	Epoxy-infused natural fiber; natural fiber allows flexibility, while epoxy provides strength during manufacturing
Cooling system	Overcoil; air is exchanged over the voice coil through the spider
Crossover	Passive Butterworth; smooth transition from midrange/midbass to the tweeter element
Frame	Anti-resonant stamped steel basket; strong construction with minimal harmonics or distortion from flex or ringing
Motor	Ferrite magnet; creates a strong magnetic field while remaining small enough to fit nearly every application
Connectors	Spade; use spade connectors or solder direct for the best connection
Grilles	Not included; typical installation mounts speakers behind a panel or dash
Download	Hifonics ZEUS Speakers (ZS) Quick Start Guide (Rev1)

Why Choose This Product?

The ZS4CX pairs a woofer and tweeter in a 2-way coaxial design for speaker locations built around a 4-inch driver. Its Alpha-Cellulose cone, rubber surround, and 1-inch soft dome tweeter give you distinct materials for mid-bass and high-frequency reproduction.

The stamped steel basket, ferrite magnet, and overcoil cooling design are part of its construction. Check the power handling and 4-ohm impedance against your audio system when choosing speakers.

Installation & Compatibility Notes

These speakers are listed as universally compatible with vehicle locations that accommodate 4-inch drivers, a 9.4 cm cut-out diameter, and 7.6 cm mounting depth. Confirm the available opening and clearance at your intended location before installation.

Spade connectors or direct soldering are specified for the connection. Grilles are not included; typical installations place the speakers behind a door panel or dash.

Frequently Asked Questions

What are the power rating and impedance of the Hifonics ZS4CX?

Each speaker is rated for 30 W RMS and 175 W peak power handling at 4 Ohms.

What mounting space do these 4-inch speakers need?

The listed cut-out diameter is 9.4 cm, and the mounting depth is 7.6 cm. Check both measurements against your speaker location.

Are grilles included?

No. The speakers are designed for typical installation behind a vehicle panel or dash.

What are the woofer cone and tweeter made from?

The woofer uses an Alpha-Cellulose cone with a rubber surround. The tweeter is a 1-inch Neo-Mylar soft dome design.

Explore More

Shop Hifonics products at 12 Volt Outlet. Want to learn more about Hifonics? Explore our Hifonics brand profile.

Brand	Hifonics
Series	ZEUS
Speaker Size	4"
Type	Coaxial Speaker
Configuration	2-Way
RMS Power Handling	30 W
Peak Power Handling	175 W
Impedance	4 Ohms
Frequency Response	55 Hz - 19 kHz
Sensitivity	88 dB
Crossover Slope	6 kHz 12 dB
Mounting Diameter / Cut Out	9.4 cm
Outside Diameter	13.7 cm
Mounting Depth	7.6 cm
Weight	1.0 kg
Dimensions	30.5 × 15.7 × 7.8 cm
Color	Black
CEA Standards	CEA426B
Compatible Vehicles	Universal

Feature	Benefit
Tweeters	1 inch: Clear highs while handling plenty of power without sounding harsh. Neo-Mylar Soft Dome Tweeter: Impact Resistant Tweeter Elements, Great sound quality and increased reliability. Kapton: Lightweight and efficiently dissipates heat.
Cone Material	Alpha-Cellulose Cones: Light weight for speed and very rigid for deep bass.
Surround / Cone Coupling	Rubber: Moisture Resistant Rubber Surround with high Mid-Bass Impact. High Temperature Adhesive: Special adhesive is chosen to create a permanent bond between the cone and the surround.
Voice Coil / Former Assembly	Pure Copper: Creates strong magnetic field with a very thin extrusion. Kapton: Lightweight and efficiently dissipates heat.
Spider	Epoxy infused Natural Fiber: Natural fiber allows flexibility while the epoxy which gives strength during the manufacturing process.
Cooling System	Overcoil: Air is exchanged over the voice coil through the spider.
Crossover	Passive Butterworth: Smooth transition of frequencies from midrange/midbass to the tweeter element.
Frame	Anti-Resonant Stamped Steel Basket: Very strong with minimal harmonics or distortions from flex or ringing.
Motor	Ferrite Magnet: Creates a strong magnetic field while remaining small enough to fit nearly every application.
Connectors	Spade: Use spade connectors or solder direct for the best connection.
Grills	No: Typical installation mounts speakers behind a panel or dash.
