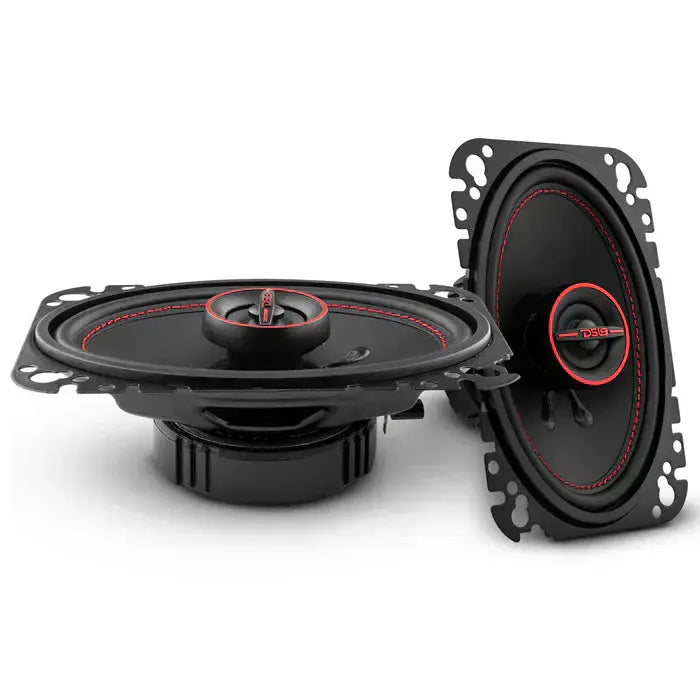

DS18 G4.6XI GEN-X 4x6 2-Way Coaxial Speakers 135 Watts 4-Ohm

Product Overview

Bring clearer vocals and instrument detail to a compact car audio setup with the DS18 G4.6XI GEN-X 4x6 2-way coaxial speakers. Their woofer and Mylar balanced dome tweeter cover a stated frequency range of 45Hz–20kHz, while the steel basket provides a sturdy frame for vehicle use.

Key Features & Benefits

• Two-way coaxial design: A woofer and dedicated tweeter handle different parts of the sound range for clearer highs and midrange detail.
• 45W RMS power handling: Match the speakers with an amplifier suited to their continuous power rating.
• 135W maximum power handling: The stated peak rating accounts for brief musical peaks.
• 4-ohm impedance: Check that your amplifier supports a 4-ohm speaker load.
• Mylar balanced dome tweeter: The dedicated dome tweeter handles high frequencies.
• Steel basket: The rigid frame is designed to resist flex under vehicle vibration.

Technical Specifications

Why Choose This Product?

The G4.6XI combines a woofer and tweeter in one 4x6 speaker, so you can add two-way sound without a separate midrange component. Its 45Hz–20kHz frequency response and 84dB sensitivity help set expectations for sound range and output when planning your system.

The 45W RMS rating is the continuous power figure to consider when matching an amplifier. The 135W maximum rating refers to peak power handling, not continuous output.

Installation & Compatibility Notes

Use the listed overall dimensions, 3.6" x 5.94" cutout, and 1.7" mounting depth to check available space before installation. A nominal 4x6 size alone does not confirm that the speaker will fit your opening.

The recommended high-pass crossover is 80Hz. Confirm that your amplifier and crossover settings support the speaker’s 4-ohm load and intended use.

Frequently Asked Questions

What does the 45W RMS rating mean?

It is the speaker’s stated continuous power-handling rating. Use it when matching the speakers to an amplifier.

Is 135W the continuous power rating?

No. The listed 135W maximum rating is for peak power handling; the RMS rating is 45W.

What size opening should I check?

Check the 3.6" x 5.94" (93 x 151mm) cutout and the 1.7" (43mm) mounting depth against your installation space.

What amplifier load should I confirm?

These speakers have a nominal impedance of 4 Ohms. Confirm your amplifier supports that load.

What crossover setting is recommended?

The listed recommended high-pass crossover is 80Hz.
