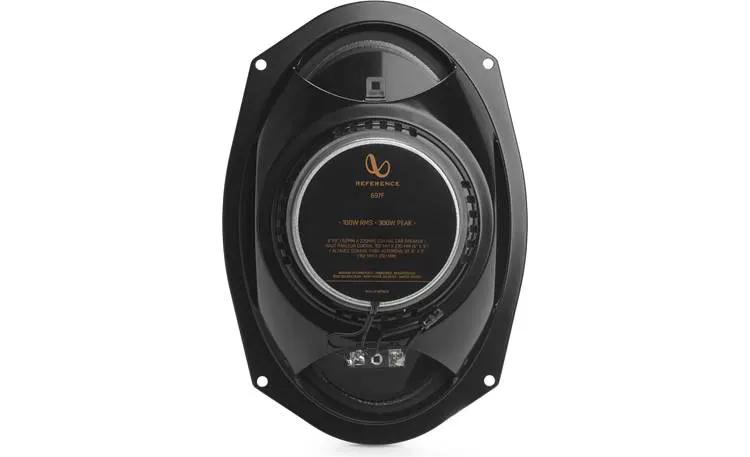

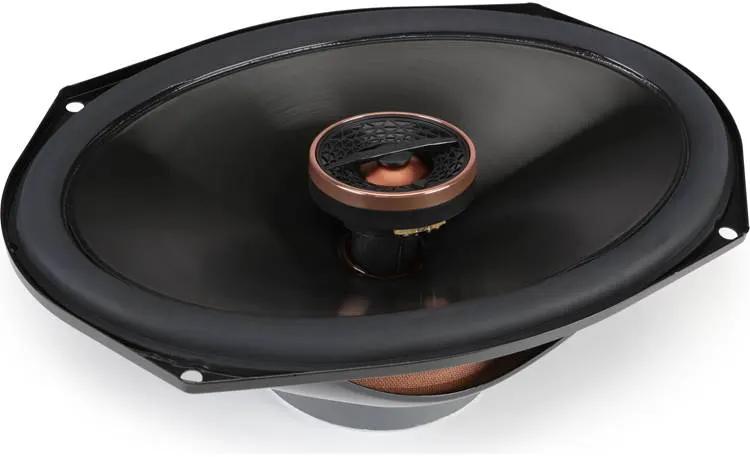

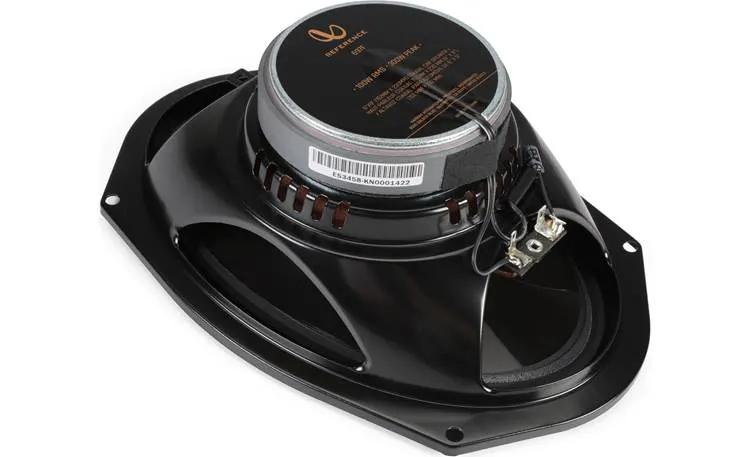

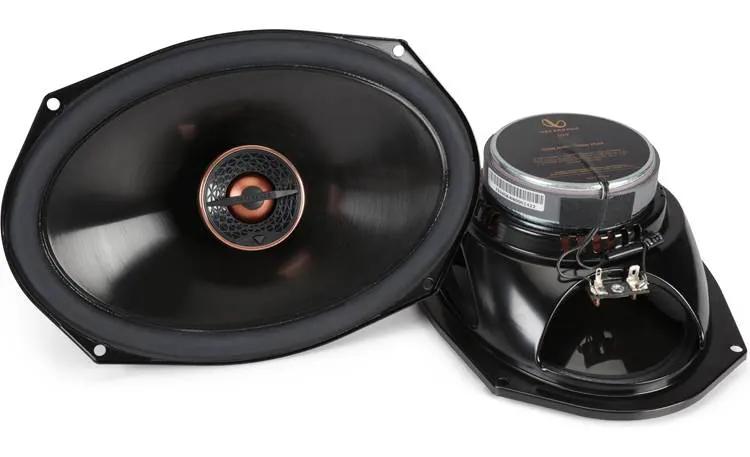

Infinity Reference REF697F 6"x9" Coaxial Speakers

Product Overview

Bring fuller midbass and smoother high notes to your car with the Infinity Reference REF697F 6"x9" coaxial speakers. This two-way speaker pair combines a Plus One+ polypropylene woofer with a 1" textile tweeter, and includes a level adjustment to help tune the sound when speakers sit low in the doors.

Key Features & Benefits

• Plus One+ woofer cone: Its larger cone moves more air than a standard 6"x9" cone for stronger midbass.
• Rubber surround: The hi-roll design supports cone excursion and protection.
• Textile dome tweeter: The 1" edge-driven tweeter delivers detailed highs designed to sound smooth.
• 3 dB tweeter adjustment: The switch lets you boost tweeter output to help compensate for low or otherwise suboptimal mounting positions.
• Efficient operation: A 94 dB sensitivity rating supports strong output with moderate power.
• Shallow top-mount depth: The 3.075" depth can suit many door installations, subject to fitment checks.

Technical Specifications

Why Choose This Product?

The REF697F pair is designed for a standard 6"x9" speaker location when you want more midbass and detailed highs from a two-way coaxial design. Its tweeter adjustment is useful when door placement leaves the high frequencies lower in the cabin than you prefer.

The stated 100W RMS handling and 94 dB sensitivity make these speakers an option to consider with a head unit or a modest amplifier. Check your system’s power and speaker-load requirements before choosing.

Installation & Compatibility Notes

These speakers use a 6"x9" footprint and have a 3.075" top-mount depth. Confirm the available opening, mounting depth, and clearance in your vehicle before installation; the listed dimensions do not establish fitment for every vehicle.

Grilles are not included. The product description indicates installation behind factory grilles or panels in most applications. The box includes bottom mount rings, screws, speed clips, foam gaskets, and an instruction manual.

Frequently Asked Questions

What comes with the Infinity Reference REF697F pair?

The package includes two speakers, two bottom mount rings, mounting screws and speed clips, two adhesive-backed foam gaskets, and an instruction manual.

Do the speakers include grilles?

No. Grilles are not included; the speakers are designed to fit behind factory grilles or panels in most applications.

What amplifier power do these speakers handle?

The rating is 100W RMS and 300W peak. Check your audio system’s output and load requirements when selecting an amplifier or head unit.

What impedance should I account for?

The speakers are specified as 3 ohms. The product details describe True Four Ohm Impedance technology as presenting a true 4-ohm load with typical vehicle wiring; confirm your system’s requirements before connecting them.

Will they fit my vehicle’s 6"x9" openings?

Check the mounting opening and available depth against the 3.075" top-mount depth, along with your vehicle’s mounting requirements.
